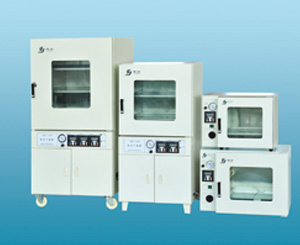

精宏真空干燥箱DZF型

精宏真空干燥箱DZF型

精宏真空干燥箱DZF型

产品编号:
市场价:¥0.00
会员价:¥0.00
品牌:精宏
生产厂家:精宏

  • 产品概览
  • 技术参数
  • 订购信息
  • 相关资料
  • 相关产品

二、产品特点:
1、长方体工作室采用优质钢板或不锈钢板。钢化、防弹双层玻璃门观察工作室内物体一目了然。
2、箱门闭合松紧能调节,整体成型的硅橡胶门封圈,确保箱内高真空度。
3、微电脑智能控温仪,具有设定,测定温度双数字显示和PID自整定功能,控温精确,可靠。
4、加热功率比例可任意调节,确保低端控温无温度之弊。
一、Suitable Scope
It is applicable to such tests as drying heat treatment.ect.of artides under vacuum conditions in industrial and mining enterprises as well as in nedical colleges and scientific research institues.
二、Characteristies of product
1、 The working chamber is ,made of high quality sheet or corrosion-resistant stainless steel.Toughened hulletproof double glass door,to observe clearly the object in the working chamber.
2、 The air-tightness of the chamber door is adjustable,with a wholly shaped silicon rubber door sealing loop;so as to guarantee in-chamber high vacuum.
3、 Intelligent temperature controller is based microprocessor with PID parameters controlling function.Digital display of set and actual temperatures.High temperature controlling accuracy and reliability.
4、Be sure to the temperature is not excess.and the heat up power can be adjusted.

三、技术参数 (Technical date):

型号Model DZF-6020 DZF-6021 DZF-6030 DZF-6050 DZF-6090 DZF-6210
电源电压Mains voltage 220V ,50Hz
控温范围Temperature control range RT+10℃~200℃ RT+10℃~150℃ RT+10℃~200℃ RT+10℃~250℃ RT+10℃~250℃
消耗功率Consumption Power 300W 400W 1400W 1200W 2160W
温度波动Temperature fluctuation ±1℃
真空度Vacuum degree <133pa
工作室尺寸Dimensions of the working chamber 300×300×275mm 320×320
×300mm
415×370
×345mm
450×450
×450mm
560×590
×640mm
工作室材料 Material of working chamber 1Grl8Ni9Ti 08F 1Grl8Ni9Ti 1Grl8Ni9Ti 1Grl8Ni9Ti
