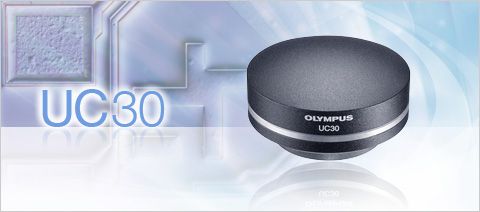

olympus奥林巴斯工业显微镜UC30数码照相装置
产品编号：UC30数码照相装置
市场价：￥0.00元
会员价：￥0.00元
品牌：Olympus奥林巴斯
生产厂家：olympus奥林巴斯
- 产品概览
- 技术参数
- 订购信息
- 相关资料
- 相关产品
High resolution: sensitive touch
The color CCD chip ensures users can see more and, as a result, measurements can be carried out with great precision and sensitivity, providing detection of even very weak signals.
The camera also offers three frame rates:
- The Search mode uses 3x pixel binning to offer nearly 35 images per second at 688 x 514 pixels. This makes finding suitable areas of a sample very easy.
- The Focus mode uses 2x pixel binning to offer 14 images per second at 1,040 x 772 pixels. This ensures that focusing can be carried out quickly and accurately.
- The Full-resolution mode offers 5 images per second at 3.2-megapixel resolution.
These modes enable users to quickly find, focus on and image exactly what they are looking for with good color fidelity. Additionally, the UC30 offers a broad exposure range (100 μs?0 s) and a black-and-white acquisition mode at 1,040 x 772 pixels.
Easy installation
The UC30 can be quickly and easily mounted onto all light microscopes with a C-mount adaptor. Furthermore, FireWire?technology guarantees that installation onto a PC or laptop equipped with a FireWire?port is simple, rapid and flexible, with power and data all from one cable.
Clear controls
The UC30 can be fully operated via Olympus Stream modular imaging software. This ensures that the camera can be used to its maximum capacity very easily and enables innovative solutions to all challenges, including image commenting, archiving, report generation and emailing.
